Good Sealing Shielded Zipper Sleeve Anti Electromagnetic Wave Drying

Name: Good Sealing Shielded Zipper Sleeve Anti Electromagnetic Wave Drying
Brand: QIUPU
Price: 1 USD

Brand Name : QIUPU

Model Number : ZPCAM

Certification : ISO9001, ROHS, VTM-0, REACH

Place of Origin : Zhejiang

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Packaging Details : Paper box

Applicable temperature : -15℃-+60℃

Usage method : With the help of JHTL tools

Thickness : 0.22mm (aluminum foil PVC)

Color : black

Material : aluminum foil + soft PVC + tinned copper wire

Contact Now

Product application

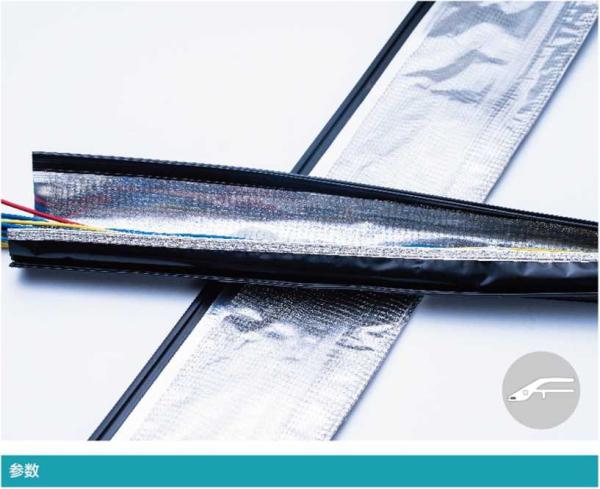

The shielded zipper sleeve (ZPCA) is made of aluminum foil PVC, tinned copper braided tape, and plastic zipper. This product has high sealing, flame retardant properties. Products are widely used in semiconductor equipment, medical equipment, laser equipment and other industries with high shielding requirements, playing a role in preventing electromagnetic wave interference.

Material: Aluminum foil +PVC+POM+Tlnned wire

Thickness: 0.22mm (Aluminum foil PVC)

Color: Black

Usage: Use the JP-TUBING tool

Functions: Anti-electromagnetic wave interference, high shielding performance, high sealing performance

Available Temperature: -15X^-+60^C

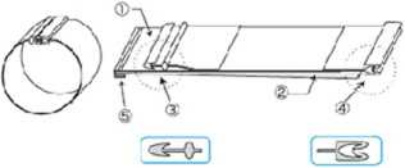

1,PVC 2,Shielding material 3, Con^x zipper 4,Concag zipper Tin 5,copper wire

Good Sealing Shielded Zipper Sleeve Anti Electromagnetic Wave Drying

specification
Model	width(mm)	beam diameter(mm)	length	packaging method
ZPCA-15	75	15
ZPCA-20	90	20
ZPCA-25	105	25
ZPCA-30	120	30
ZPCA-40	153	40	25M	Paper box
ZPCA-50	183	50
ZPCA-60	215	60
ZPCA-70	245	70
ZPCA-100	340	100

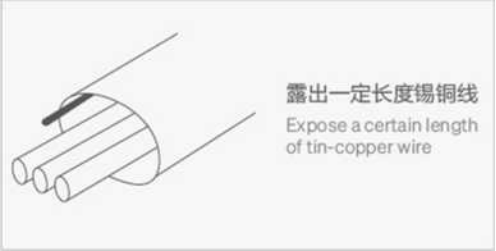

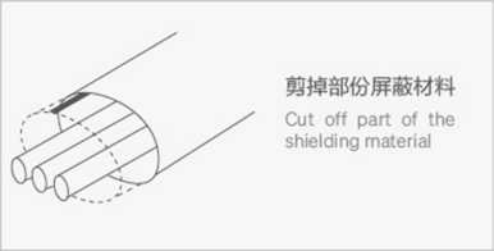

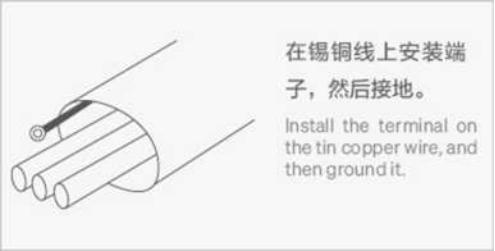

How to use shielding sleeve

Good Sealing Shielded Zipper Sleeve Anti Electromagnetic Wave Drying
